IQ QUATTRO

Contex Scanners

Ideal for precision scanning, copying and sharing

Faster, Smarter, Better, Unique

  • Scan A0 / E size documents in just 3.5 seconds.
  • Scan and collaborate with more power in every pixel.
  • Best-in-class image quality for scan, copy, file and archive.

The IQ Quattro scanners are available in 24″, 36″ and 44″

Call us today at (602)224-9971 so we can help you find the right scanner to fit your needs







More power in every pixel

With Contex CleanScan CIS modules, superfast Ethernet and award-winning Nextimage software, Contex IQ Quattro is the leading scanner for technical projects.










Less than 0.5 Watts in Standby

…and still ready to go in seconds.

Simply load the document and the IQ Quattro springs to life. Using intuiteive one-touch buttons you can scan to file, copy or email with the touch of a button.

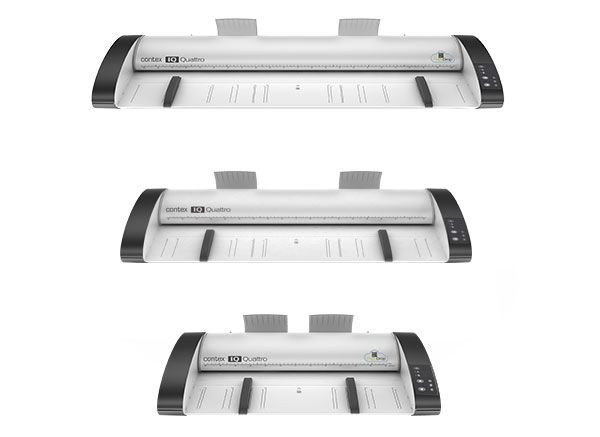

Fits Your Documents

The IQ Quattro is available in three sizes. Choose the space saving 24″ model for documents up to A1 / Dsize, the 36″ model for A0 / E-size or the 44″ model for oversize documents.




Full 48-bit Color

Where other scanners ignore some color data, the IQ Quattro offers full 48-bit color workflow.

In addition IQ Quattro delivers Adobe RGB and Device RGB for the largest gamut in the industry.

Contex colors are ensured by xRITE i1


The IQ Quattro is ideal for technical documents.  Share through cloud solutions.

The IQ Quattro is ideal for precision scanning, copying and sharing.

The IQ Quattro is ideal for project workgroups.

Faster: Spend less time scanning and instead focus on what matters to you.

Smarter: IQ Quattro is networked with your entire workgroup and Cloud enabled so anybody in your project team can use it from their smartphone. IQ Quattro is networked with your entire workgroup and Cloud enabled so anybody in your project team can use it from their smartphone.

Better: Shadows and unwanted back- ground are suppressed leaving you with crisp, sharp and natural scans – ready to be used in your continued workflow.

Unique technology: With Contex CleanScan CIS modules, superfast Ethernet and award-winning Nextimage software, Contex IQ Quattro is the leading scanner for technical projects.

The IQ Quattro scanner is the 4th generation CIS scanner from Contex and contains proven technology from our CCD range and CIS technology refined to match our customers requirements for high quality, speed and ease of use. It is available 24, 36 and 44 inches.

IQ Quattro scanners are ideal for project groups. Scan documents and enhance your files in AutoCAD.

Key features

  • Fast, crisp and sharp scans of regular and oversized documents
  • Fit for multi-site network
  • Scan speed up to 14 in / sec in color with Sigma and CFR
  • CleanScan – provides leading image quality
  • Gigabit Network
  • Magnetic document guides
  • Using only 0.5W in standby
  • Recovery from standby in just 1 second by simply loading the document
  • Cloud Enabled

Large input surface for easy placement

Return guides for easy document handling, by returning documents to the user with rewind through scanner. Return guides are detachable. Magnetic document guides can be used to support long documents and makes precise document loading easier.

Designed for optimal ergonomic working environment. Height adjustable stand in 3 positions.

Contex ClearScan – provides leading quality

With new methods for diffusion you you will get the most natural light in your scans.

More power in every pixel

Contex CleanScan CIS modules with unmatched image quality combined with the award winning Nextimage Software.

Get images where you need them

Your rainforest365 compatible Contex scanner works the way you work. The only choice you have to make, is where you need the documents – rainforest365 handles the rest. rainforest365 can deliver images by e-mail, directly into your DropBox and print to any of your HP ePrint enabled printers.

EmailDropBoxHP ePrintGoogle DriveMicrosoft SkyDriveBox.com

IQ Quattro 2490

Specifications
Scanning Speed1 (inch/sec.) Scanner speed while scanning 24-inch wide document
200 dpi RGB Color 14
200 dpi Grayscale / Monochrome 14
Working height2 32.8 / 33.8 / 34.8 inch (834 / 859 / 884 mm)
Maximum Scan Width 24 inch (610 mm)
Maximum Media Width 26.6 inch (676 mm)
Optical Resolution 1200 dpi
Maximum Resolution 9600 dpi
Total number of Pixels 32400 pixels
CIS Technology3 Contex CleanScan
Contex SIGMA4 Included
Contex CFR5 Included
Maximum Media Thickness 0.08 inch (2 mm) flexible documents only
Accuracy 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit / 16-bit
Color Space Adobe RGB / Device RGB / RAW RGB / sRGB
USB with xDTR Included
Gigabit Ethernet with xDTR2 Included
Cloud enabled Yes
Network workflow Pull / Push
Energy Star certified Included
Software6 AutoCAD®, MicrostationTM, ArcGISTM and all other CAD, GIS and other image editing / storage applications
Fileformats7 TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, others
Device Drivers 32 and 64-bit Windows 10, 8, Windows 7 and Vista
Nextimage TWAIN 64-bit TWAIN application driver included for use with EDM and other imaging software
Power Consumption (Ready / Sleep mode / Scanning) 10W / 0.5W / 18W
Power Requirements 100-240V, 60/50Hz, 18W
Weight & Dimensions 35.5 Ibs. (16.1 kg) / 32.4 x 18.9 x 6.3 inches (823x480x160 mm)
Certifications/compliance CE, cUL, Customs Union, Ukr, VCCI, FCC Class A, RoHS and ENERGY STAR certified
Country of origin Designed and engineered in Denmark, manufactured in China
1) Scanning speeds depend on document width and computer configuration. Contex recommends Intel Core Duo, Core 2 Duo, or better processors, 2GB RAM, Hi-speed USB2. Speed tests performed using Nextimage software, PC with Intel Core i5-2500 Quad processor, 8GB RAM, Hi-speed USB2, 7200rpm HDD, Windows 7 64-bit Ultimate.

2) Requires optional scanner stand.

3) Contex CleanScan technology is based on custom CIS modules with Dual sided LED light and Dual Diffusion.

4) Signal Intensity Matching (SIGMA) is a Contex Patent. Sensor heating during a scan can cause inhomogeneous images. Thanks to Contex innovative thinking Contex IQ Quattro scanners will minimize sensor differences LIVE during a scan.

5) Color Fringe Removal (CFR) is a Contex Patent. Color Fringing is a natural consequence of CIS technology sequentially flashing R-G-B. Thanks to Contex innovative thinking CFR will remove this problem with advanced filter technology.

6) Contex applications creates industry standard raster file formats that can be used in any CAD or GIS application.

7) Requires optional Nextimage software

All trademarks remain the property of their respective holders, and are used only to directly describe the product being provided.

Their use in no way indicates any relationship between AZ Overland Blueprint, Contex and the holders of the mentioned trademarks.

Specifications

IQ Quattro 3620 IQ Quattro 3650 IQ Quattro 3690
Scanning Speed1 (inch/sec.) Scanner speed while scanning 36-inch wide document
200 dpi RGB Color 3 7 14
Upgradable to 14 inch/sec color No Upgradable Included
200 dpi Grayscale / Monochrome 10 14 14
Working height2 32.8 / 33.8 / 34.8 inch (834 / 859 / 884 mm) 32.8 / 33.8 / 34.8 inch (834 / 859 / 884 mm) 32.8 / 33.8 / 34.8 inch (834 / 859 / 884 mm)
Maximum Scan Width 36 inch (914 mm) 36 inch (914 mm) 36 inch (914 mm)
Maximum Media Width 38 inch (965 mm) 38 inch (965 mm) 38 inch (965 mm)
Optical Resolution 1200 dpi 1200 dpi 1200 dpi
Maximum Resolution 1200 dpi 9600 dpi 9600 dpi
Total number of Pixels 64800 pixels 64800 pixels 64800 pixels
CIS Technology3 Contex CleanScan Contex CleanScan Contex CleanScan
Contex SIGMA4 Included Included Included
Contex CFR5 Included Included Included
Maximum Media Thickness 0.08 inch (2 mm) 0.08 inch (2 mm) 0.08 inch (2 mm)
Accuracy 0.1% +/- 1 pixel 0.1% +/- 1 pixel 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit / 16-bit 48-bit / 16-bit 48-bit / 16-bit
Color Space Adobe RGB / Device RGB / RAW RGB / sRGBAdobe RGB / Device RGB / RAW RGB / sRGB Adobe RGB / Device RGB / RAW RGB / sRGB
USB with xDTR Included Included Included
Gigabit Ethernet with xDTR2 Included Included Included
Cloud enabled Yes Yes Yes
Network workflow Pull / Push Pull / Push Pull / Push
Energy Star Certified Included Included Included
Software6 AutoCAD®, MicrostationTM, ArcGISTM and all other CAD, GIS and other image editing / storage applications
Fileformats7 TIF, JPG, PDF, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, others
Device Drivers 32 and 64-bit Windows 10, 8, Windows 7 and Vista
Nextimage TWAIN 64-bit TWAIN application driver included for use with EDM and other imaging software
Power Consumption (Ready / Sleep mode / Scanning) 10W / 0.5W / 23W
Power Requirements 100 – 240V, 60/50Hz, 23W
Weight & Dimensions 20.3 kg, LxWxH: 45.7 x 18.9 x 6.3 inches (1160x480x161 mm)
Certifications/compliance CE, cUL, Customs Union, Ukr, VCCI, FCC Class A, RoHS and ENERGY STAR Certified
Country of origin Designed and engineered in Denmark, manufactured in China
1) Scanning speeds depend on document width and computer configuration. Contex recommends Intel Core Duo, Core 2 Duo, or better processors, 2GB RAM, Hi-speed USB2. Speed tests performed using Nextimage software, PC with Intel Core i5-2500 Quad processor, 8GB RAM, Hi-speed USB2, 7200rpm HDD, Windows 7 64-bit Ultimate.

2) Requires optional scanner stand.

3) Contex CleanScan technology is based on custom CIS modules with Dual sided LED light and Dual Diffusion.

4) Signal Intensity Matching (SIGMA) is a Contex Patent. Sensor heating during a scan can cause inhomogeneous images. Thanks to Contex innovative thinking Contex IQ Quattro scanners will minimize sensor differences LIVE during a scan.

5) Color Fringe Removal (CFR) is a Contex Patent. Color Fringing is a natural consequence of CIS technology sequentially flashing R-G-B. Thanks to Contex innovative thinking CFR will remove this problem with advanced filter technology.

6) Contex applications creates industry standard raster file formats that can be used in any CAD or GIS application.

7) Requires optional Nextimage software.

All trademarks remain the property of their respective holders, and are used only to directly describe the product being provided.

Their use in no way indicates any relationship between AZ Overland Blueprint, Contex and the holders of the mentioned trademarks.

Specifications

IQ Quattro 4420 IQ Quattro 4450 IQ Quattro 4490
Scanning Speed1 (inch/sec.) Scanner speed while scanning 36-inch wide document
200 dpi RGB Color 2 7 14
Upgradable to 14 inch/sec color No Upgradable Included
200 dpi Grayscale / Monochrome 10 14 14
Working height2 32.8 / 33.8 / 34.8 inch (834 / 859 / 884 mm) 32.8 / 33.8 / 34.8 inch (834 / 859 / 884 mm) 32.8 / 33.8 / 34.8 inch (834 / 859 / 884 mm)
Maximum Scan Width 44 inch (1118 mm) 44 inch (1118 mm) 44 inch (1118 mm)
Maximum Media Width 47 inch (1194 mm) 47 inch (1194 mm) 47 inch (1194 mm)
Optical Resolution 1200 dpi 1200 dpi 1200 dpi
Maximum Resolution 1200 dpi 9600 dpi 9600 dpi
Total number of Pixels 64800 pixels 64800 pixels 64800 pixels
CIS Technology3 Contex CleanScan Contex CleanScan Contex CleanScan
Contex SIGMA4 Included Included Included
Contex CFR5 Included Included Included
Maximum Media Thickness 0.08 inch (2 mm) 0.08 inch (2 mm) 0.08 inch (2 mm)
Accuracy 0.1% +/- 1 pixel 0.1% +/- 1 pixel 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit / 16-bit 48-bit / 16-bit 48-bit / 16-bit
Color Space Adobe RGB / Device RGB / RAW RGB / sRGB Adobe RGB / Device RGB / RAW RGB / sRGB Adobe RGB / Device RGB / RAW RGB / sRGB
USB with xDTR Included Included Included
Gigabit Ethernet with xDTR2 Included Included Included
Cloud enabled Yes Yes Yes
Network workflow Pull / Push Pull / Push Pull / Push
Energy Star Certified Included Included Included
Software6 AutoCAD®, MicrostationTM, ArcGISTM and all other CAD, GIS and other image editing / storage applications
Fileformats7 TIF, JPG, PDF, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, others
Device Drivers 32 and 64-bit Windows 10, 8, Windows 7 and Vista
Nextimage TWAIN 64-bit TWAIN application driver included for use with EDM and other imaging software
Power Consumption (Ready / Sleep mode / Scanning) 10W / 0.5W / 23W
Power Requirements 100 – 240V, 60/50Hz, 23W
Weight & Dimensions 27 kg, LxWxH: 53.1 x 18.9 x 6.3 inches (1349x480x160 mm)
Certifications/compliance CE, cUL, Customs Union, Ukr, VCCI, FCC Class A, RoHS and ENERGY STAR Certified
Country of origin Designed and engineered in Denmark, manufactured in China
1) Scanning speeds depend on document width and computer configuration. Contex recommends Intel Core Duo, Core 2 Duo, or better processors, 2GB RAM, Hi-speed USB2. Speed tests performed using Nextimage software, PC with Intel Core i5-2500 Quad processor, 8GB RAM, Hi-speed USB2, 7200rpm HDD, Windows 7 64-bit Ultimate.

2) Requires optional scanner stand.

3) Contex CleanScan technology is based on custom CIS modules with Dual sided LED light and Dual Diffusion.

4) Signal Intensity Matching (SIGMA) is a Contex Patent. Sensor heating during a scan can cause inhomogeneous images. Thanks to Contex innovative thinking Contex IQ Quattro scanners will minimize sensor differences LIVE during a scan.

5) Color Fringe Removal (CFR) is a Contex Patent. Color Fringing is a natural consequence of CIS technology sequentially flashing R-G-B. Thanks to Contex innovative thinking CFR will remove this problem with advanced filter technology.

6) Contex applications creates industry standard raster file formats that can be used in any CAD or GIS application. 7) Requires optional Nextimage software.

All trademarks remain the property of their respective holders, and are used only to directly describe the product being provided.

Their use in no way indicates any relationship between AZ Overland Blueprint, Contex and the holders of the mentioned trademarks.

Nextimage

Nextimage Scan+Archive is powerful and user-friendly scanning and archiving software. For the full Nextimage experience, with complete multi-function capabilities plus touch-screen compatibility and printer support, choose Nextimage Repro.

NextImage Scan+ArchiveNextImage Repro
 Touch-screen mode
Full Scan FunctionsFull Scan Functions
Multi-page PDF, TIF filesMulti-page PDF, TIF files
TIF, JPG, PDF, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, othersTIF, JPG, PDF, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, others
Automatic file naming templatesAutomatic file naming templates
Customize/edit index color paletteCustomize/edit index color palette
AccountingAccounting
 Full Copy Functions
 Supports unlimited printers
 Batch copy
 Closed loop color calibration
 ICC color management
Full Image Adjustment ControlFull Image Adjustment Control
Auto-rotateAuto-rotate
Auto-align / deskewAuto-align / deskew
Smooth / sharpen filterSmooth / sharpen filter
Black / white level adjustmentBlack / white level adjustment
RGB level adjustmentsRGB level adjustments
Histogram viewHistogram view
Measurement toolMeasurement tool
