HP DESIGNJET T790

HP DesignJet T790 PostScript® Printer

Productive printing for small teams

Rely on the most productive 24-inch (610 mm) HP DesignJet printer¹ to get great results quickly. Produce precise plans, drawings, and maps with fine line quality and up to 2400 dpi. Even print TIFF, JPEG, and PDF² files from the printer’s USB drive—no computer required.

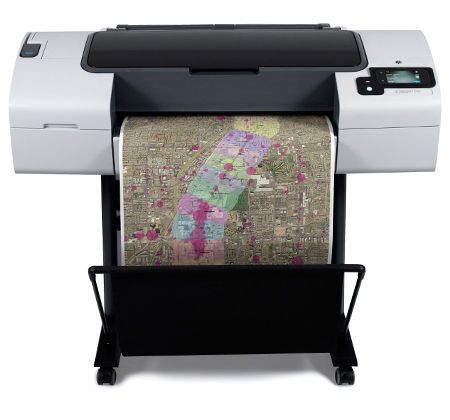

HP DesignJet T790 plotter

Call us today at (602)224-9971 so we can help you find the right plotter to fit your needs

HP DesignJet T790 24-in (610-mm) Printer (CR648A)

D/A1-size prints in 32 seconds

Plug-and-play simplicity

Intuitive touchscreen

Model size 24 in
Functions Print
Speed specifications
Print time line drawing (economode, D plain paper)
32 sec/page
Print speed line drawing (economode, D plain paper)
93 D prints per hour
Print speed
93 D prints per hour (Line drawing on plain paper in Draft mode with Economode on)
Memory specifications
Memory
  • 8 GB (virtual)
Internal Storage
  • Standard, 160 GB
Technical specifications
Print quality (best)
Color: Up to 2400 x 1200 optimized dpi Black: Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected
Print technology
HP Thermal Inkjet
Number of print cartridges
6 (cyan, gray, magenta, matte black, photo black, yellow)
Ink types
  • Dye-based (C, G, M, pK, Y)
  • pigment-based (mK)
Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
Non-printable area (cut-sheet)
0.2 x 0.67 x 0.2 x 0.2 in
Guaranteed minimum line width
0.0024 in (ISO/IEC 13660:2001(E))
Line accuracy
±0.1%
Maximum optical density (black)
2.15 maximum black optical density (6 L*min)

Paper handling

Finished output handling
  • Sheet feed
  • roll feed
  • automatic cutter
Media types
Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)
Media sizes standard (sheets, rolls)
  • 8.3 to 24-in wide sheets
  • 11 to 24-in rolls
Media sizes, custom
  • 8.3 x 11 to 24 x 66 in
Roll external diameter
5.3 in
Media thickness
Up to 31.5 mil

Connectivity

HP ePrint capability
Yes
Connectivity, standard
  • Fast Ethernet (100Base-T)
  • Hi-Speed USB 2.0 certified
  • EIO Jetdirect accessory slot
Print languages
Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI

Power and operating requirements

Power consumption
< 120 watts (printing), < 27 watts (ready), < 7 watts (< 25 watts with embedded Digital Front End) (sleep), 0.1 watts (off)
Energy efficiency
  • ENERGY STAR® qualified, EPEAT® Bronze
Operating temperature range
41 to 104ºF (5 to 40ºC )
Operating humidity range
20 to 80% RH

Dimensions and weight

Minimum dimensions (W x D x H)
49.7 x 27.6 x 41.3 in
Weight
132 lb
Warranty
One-year limited hardware warranty
What’s in the box
HP DesignJet T790 Printer; printheads; introductory ink cartridges; printer stand (NA and LAR only); spindle; quick reference guide; setup poster; startup software; power cord
Software included
HP Utility for Mac and Windows
1Compared to other 24-inch HP DesignJet T-series printers.
2PDF files only available with PostScript® (PS) accessory (optional accessory to be purchased separately) or buying PS versions.
3Local printing requires mobile device and printer to be on the same network (usually Wi-Fi access points bridge wireless to wired connections). Wireless performance is dependent on physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz operations only. Remote printing requires an Internet connection to an HP web-connected printer. Wireless broadband use requires separately purchased service contract for mobile devices. Check with service provider for coverage and availability in your area.
4The HP Print Service Plugin app is available for Android™ mobile devices running Android™ v.4.4 or later. The app is free from Google Play.
